Callisto Continental Roller Shutters
Door & Window Security
Protect vulnerable doors and windows with Callisto Continental Roller Shutters, the effective and discreet security solution. The compact size of the shutter box makes it ideal even for domestic settings. When closed, Callisto’s extruded aluminium laths provide not only solid physical security but a strong visual deterrent against intruders.
Strong, Secure
The extruded aluminium profiles used for Callisto’s laths and guides and the cast aluminium end plates, create a security shutter that is strong, light and corrosion resistant.
Cost effective, Versatile
Callisto is not only a cost effective alternative to steel shutters, but its ease of use, with tubular motor drives or spring assisted manual operation makes Callisto highly versatile. You’ll find Callisto across all sectors.
CURTAIN OPTIONS
STANDARD OR VISION OPTIONS

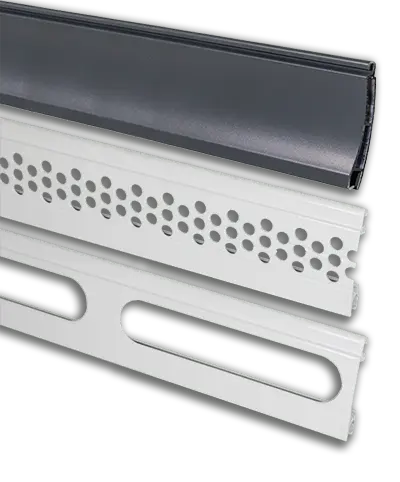

Callisto laths are available in standard or, if vision is required, with perforated or punched laths. Curtains can be constructed of all vision laths or mixed with standard laths to create a vision section.
A polycarbonate insert is available to assist with weather protection, reduce airflow and insect ingress.

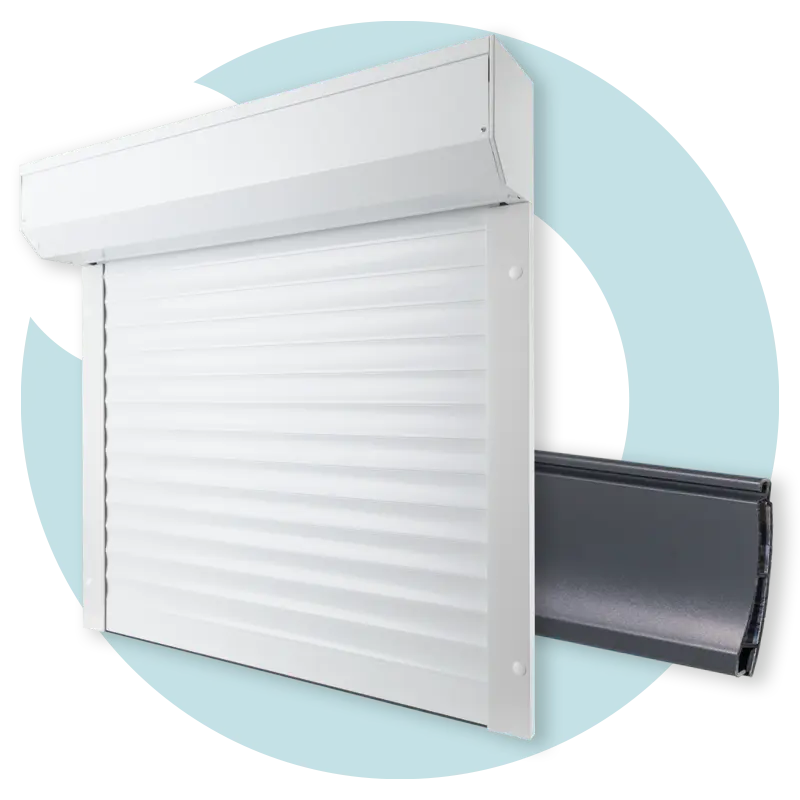

STANDARD
Solid laths. Total security.

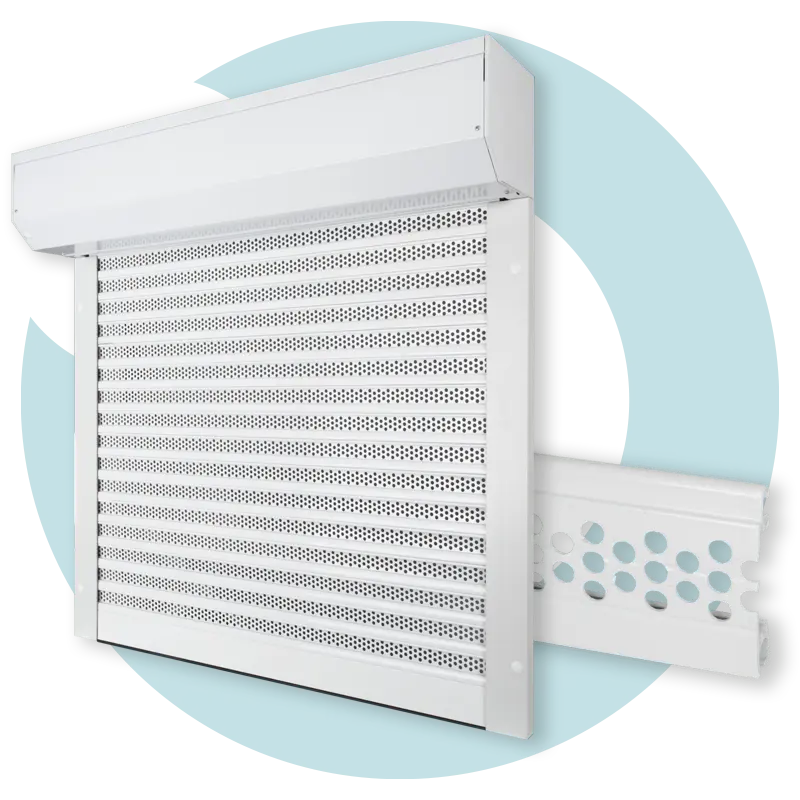

PERFORATED
Attractive vision.

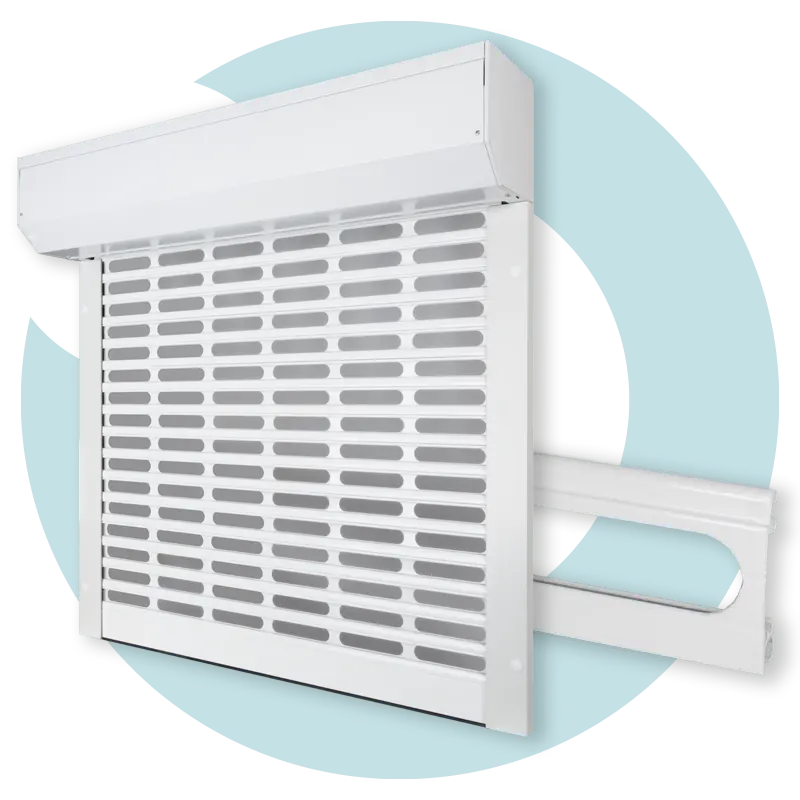

PUNCHED
Maximum visibility.
Curved Laths
Externally mounted shutters will show the smooth concave face of the lath, internally mounted will show the convex face with its subtle ribbed profile.
44mm extruded aluminium lath – Externally mounted shutters will show the smooth concave face of the lath, internally mounted will show the convex face with its subtle ribbed profile.
COLOURS
High-grade powder coated finishes are low-sheen, durable and attractive. Choose from:
4 standard colours or any standard RAL or BS colour
White
RAL 9016 Smooth
Dark Brown
RAL 8019 Smooth
Graphite Black
RAL 9011 Smooth

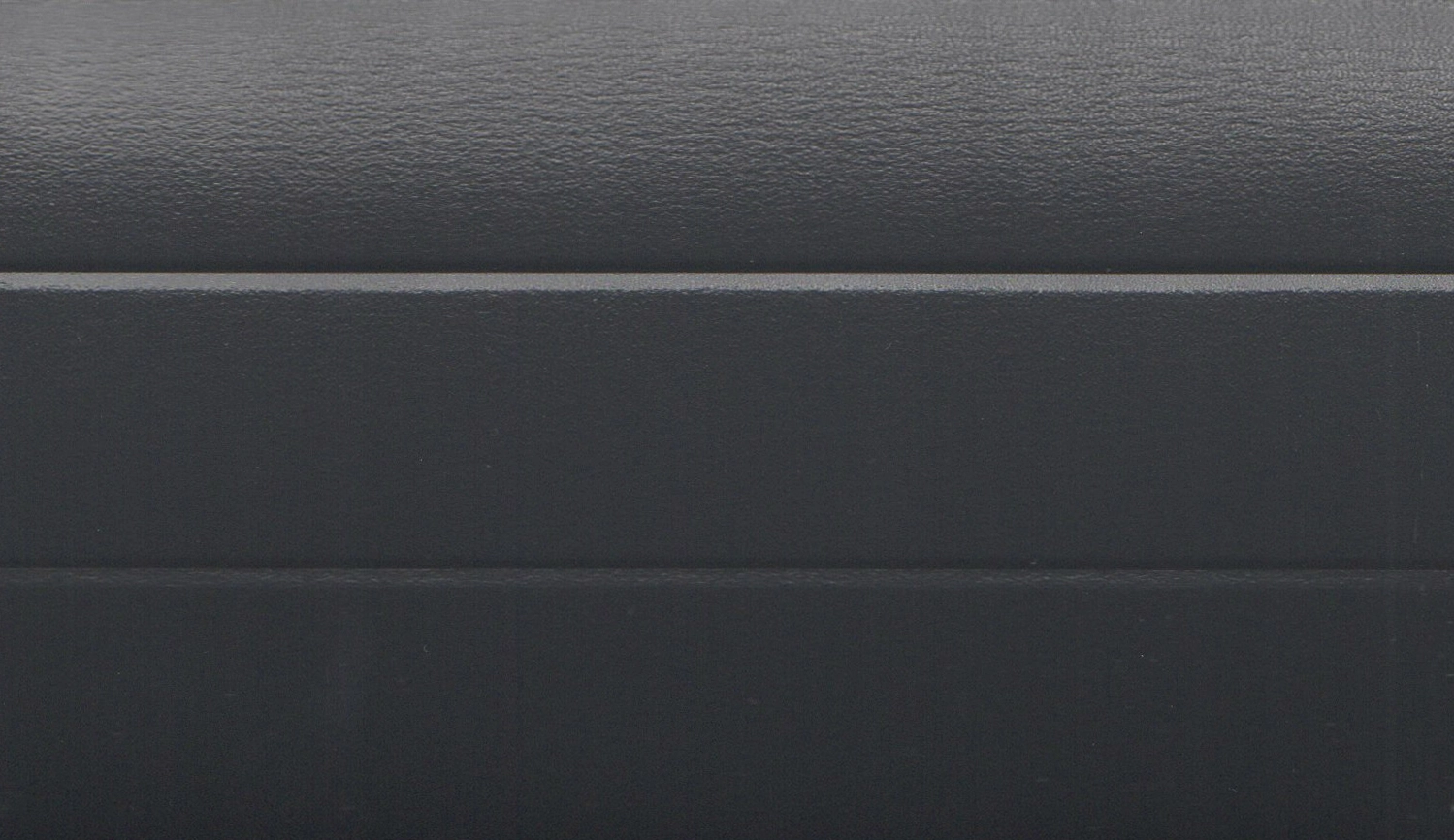

Anthracite Grey
RAL 7016 Smooth
RAL or BS colours
Powder coated
KEY FEATURES
Shutter Box
The shutter box is constructed from die cast aluminium end plates, connected by a two-piece pre-formed aluminium casing that completely encloses the workings of the shutter.
Shutter Barrel
The octagonal shutter barrel is constructed of heavy-gauge galvanised steel. It houses the tubular motor on powered shutters and the spring assistance on manual shutters.
Shutter Curtain
The curtain is constructed from 44mm deep x 9mm thick doubleskin extruded aluminium laths, weighing 7kg/m2. The curtain is fully endlocked and complete with a 41mm deep bottom lath with a rubber weather seal.
Side Guides
Callisto has 53mm x 22mm extruded aluminium guide channels as standard, but for added security, a 66mm x 22mm security guide can be incorporated. Both guides include double brush seals as standard, to assist in the smooth and quiet running of the curtain.
Callisto side guides are factory drilled, and supplied with fixings & hole cover caps.
Locking Straps
The locking straps hold the curtain closed and the lock rings, covered with a polymer fur, protect the curtain as it rolls around the barrel. Marking to the curtain over time is a characteristic of all shutters, however Callisto’s design helps limit the effect.
OPERATION
Manual Operation
Spring Assisted
Manually operated shutters are available up to 2800mm over-guide width x 3000mm top of box height and a minimum width of 715mm. Shutters are spring assisted to aid operation by hand.
The shutter is locked using a simple key operated lock that extends locking rods into the side guides.
Powered Operation
Single or Group Control
Tubular motor driven shutters are available up to 4000mm over-guide width x 4000mm top of box height and a minimum width of 750mm. Shutters are typically operated by a rocker switch individually or in groups up to a maximum of four shutters. The motor and the locking straps hold the door securely closed.
Emergency Hand Crank
In the event of power failure, motorized shutters can be operated by a hand crank. The winding eye is inserted into the motor through the access point on the box. The access point is covered by cap. A locking cover is available for added security.
Extensive Applications
Protect vulnerable doors and windows with Callisto, the effective and discreet security solution suited to a wide range of applications:
Callisto Continental Roller Shutters example installations
COMPLIANT QUALITY
Quality is central to everything we do – our reputation has been built upon it… Priory was one of the first industrial door manufacturers in the country to test all of its products to what is now known as CPR (Construction Products Regulation) not only for Resistance to Wind Load, but also:
- Forces for Manual Operation
- Safe Opening of Vertical Moving Doors
- Anti-Drop Devices
- Out of Balance Forces
- Operating Forces
- Safety in Use of Power Operated Doors
Your Warranty
Callisto is covered by warranties for the periods stated below, subject to terms and conditions (available on request and supplied with every door) and regular maintenance.
1 YEAR
Warranty on door components against manufacturing defect.
5 YEAR
Warranty on motor and controls excluding batteries and transmitters.
Download the Callisto Brochure
A handy selling tool, download our full colour Callisto brochure here…
Priory is totally committed to trade supply, support and service. Get in touch to enquire about a trade account now.
We only supply to trade however, if you like our products then get in touch and we’ll put you in touch with one of our trusted suppliers.
